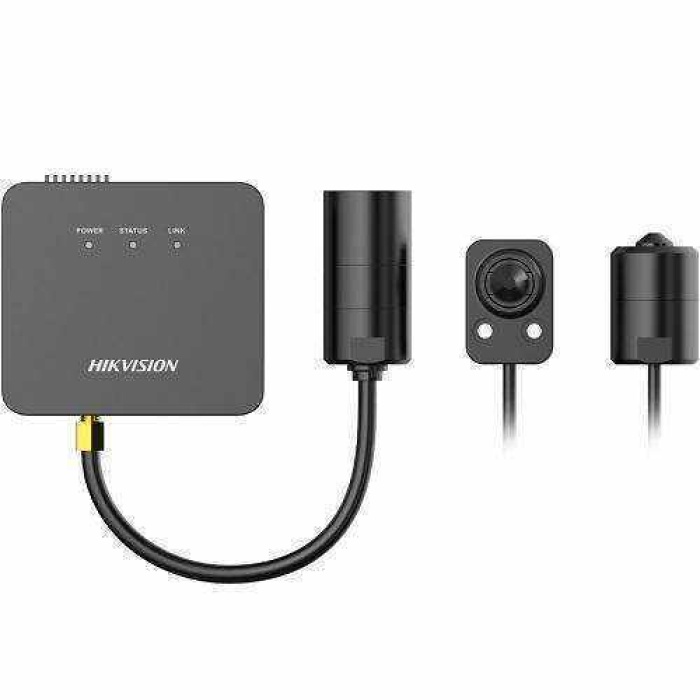

Hikvision NEI-SP6425 2MP Modüler Mini Box Network IP Kamera

Hikvision NEI-SP6425 2MP Modüler Mini Box Network IP Kamera

• High quality imaging with 2 MP resolution
• Efficient H.265+ compression technology to save bandwidth and storage
• Clear imaging against strong back light due to 120 dB true WDR technology
• Audio and alarm interface available
• 3D DNR technology delivers clean and sharp images

• Image Sensor1/2.8" Progressive CMOS
• Min. IlluminationColor: 0.005 Lux @(F1.2,AGC ON), 0.014 Lux @(F2.0,AGC ON)
• Shutter Speed1/3 s to 1/100,000 s
• Slow ShutterYes
• P/NP/N
• Wide Dynamic Range120 dB
• Day & NightElectronic

• Lens
• Lens Type & FOV

  L10:

  3.7 mm: H 71.4°, V 39.4°, D 82.6°

  L20:

  2.8 mm: H 88.6°, V 49.0°, D 100.4°

  3.7 mm: H 71.4°, V 39.4°, D 82.6°

  L30:

  2.8 mm: H 101.5°, V 54.8°, D 118.9°

  4 mm: H 79.6°, V 42.9°, D 94.6°

  6 mm: H 50.1°, V 28.8°, D 57.1°



• Aperture

  L10:

  3.7 mm: F2.5

  L20:

  2.8 mm: F2.5

  3.7 mm: F2.5

  L30:

  2.8 mm: F2.0

  4 mm: F2.0

  6 mm: F2.0



• Lens MountM12, Pin hole

• Video
• Max. Resolution1920 × 1080
• Main Stream

  50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)

  60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

• Sub Stream

  50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

  60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

• Third Stream

  50Hz: 1fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480, 640 × 360, 352 × 288, 320 × 240)

  60Hz: 1fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 640 × 360, 352 × 240, 320 × 240)

• Video Compression

  Main stream: H.265/H.264

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• H.264+Main Stream supports
• H.265+Main Stream supports
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)Yes
• Region Of Interest (ROI)1 fixed region for main stream

• Audio
• Environment Noise FilteringYes
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

• Network
• Simultaneous Live ViewUp to 6 channels
• APIONVIF(PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS,PPPoe,SNMP
• Smooth StreamingYes
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF
• Network Storage

  microSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto network replenishment (ANR)

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11

• Image
• Day/Night SwitchDay, Night, Auto, Schedule
• Image EnhancementBLC, 3D DNR
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

• Interface
• Alarm1 input, 1 output (max. 12 VDC, 30 mA)
• Audio1 input (line in), connector, max. input amplitude: 3.3 vpp; 1 output (line out) connector, max.output amplitude: 3.3 vpp
• RS-4851 RS-485 interface, half duplex
• On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
• Hardware ResetYes
• Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

• Event
• Smart EventIntrusion detection, line crossing detection, region entrance detection, region exiting detection

• Intelligent (Traditional Algorithm)
• Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

• General
• Linkage MethodUpload to NAS/memory card, notify surveillance center, trigger record, trigger capture
• Web Client Language

  32 languages:

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese,Latvijas ,lietuviešu ,Português

• Software ResetYes
• Firmware VersionV5.5.98
• General FunctionAnti-flicker, heartbeat, mirror, privacy masks, password reset via e-mail
• Startup And Operating Conditions-10 °C to 40 °C (14 °F to 104 °F)
• Power Supply

  12 VDC ± 20%

  PoE: 802.3af, Type 1 Class 2

• Power Consumption And Current

  12 VDC, 0.3 A, max. 3.6 W

  POE(802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 4 W

• Power Interface2-core terminal block
• Camera Dimension

  Main Body: 77.5 × 69 × 26 mm (3.1" × 2.7" × 1.0")

  Main Body with Bracket: 82.3 × 72.6 × 33.5 mm (3.3 × 2.9" × 1.3")

  L10: Ø26 × 32.7 mm (Ø1.0 × 1.3")

  L20: 37 × 26 × 15.1 mm (1.6 × 1.0" × 0.6")

  L30: Ø26 × 51.4 mm (Ø1.0 × 2.0")"

• Camera Weight92 g (0.2 lb.)
• With Package Weight592 g (1.3 lb.)

• Approval
• EMC

  FCC ID (47 CFR Part 15, Subpart B);

  CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

  RCM (AS/NZS CISPR 32: 2015);

  IC (ICES-003: Issue 6, 2016);

  KC (KN 32: 2015, KN 35: 2015)

• Safety

  UL (UL 60950-1);

  CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013);

  CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);

  BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);

  LOA (IEC/EN 60950-1)

• Environment

  CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

  Reach Regulation (EC) No 1907/2006
