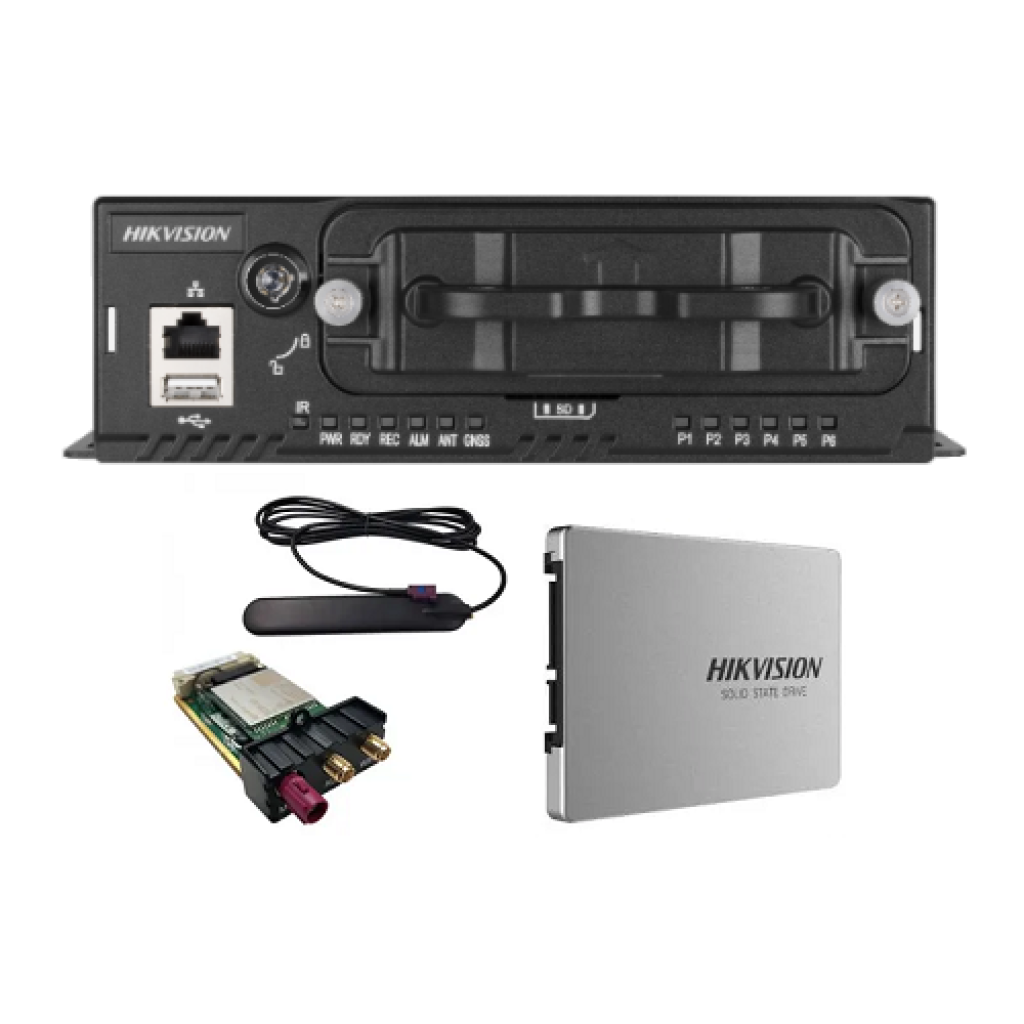

Hikvision NEI-MVR5604 4-Kanal Mobile Network Video Kayıt Cihazı
4.5 Hücresel Veri Anteni ve 2 adet 1TB Hikvision SSD Disk dahildir.
Key Feature
4-ch IP cameras connectable via PoE interfaces, and 4-ch IP
cameras extendable via PoE switch.
Up to 4 MP resolution of H.264/H.265 compression for each
IP camera.
Two pluggable 2.5-inch HDDs/SSDs, adopting hard disk
vibration damping technology.
Stores videos that have dropped frame in SD card when
HDDs/SSDs are damaged.
User-friendly GUI providing easy and flexible operations.
Pluggable 3G/4G module and Wi-Fi module providing flexible
data transmission solutions.
Built-in GPS module precisely positioning the vehicle via the
satellite and recording the location information in the video
stream.
Pluggable dummy HDD for HDD with up to 2 TB capacity.
Information collection interfaces collecting driving
information such as left/right turn, braking, reversing, etc.
Specialized aviation connectors ensuring signal stability.
Shutdown delay (0 h to 6 h) and 24-hour scheduled
startup/shutdown.
Battery protection avoids vehicle from running out of battery.
Wide-range power input (+9 VDC to +32 VDC).
Power-off protection prevents key data loss.
Software-based firewall supported.
Connectable to PTZ camera and PTZ control is supported.
Supports accessing via WEB browser.
Specification
System
Operating
System | Embedded Linux |
Video/Audio Input
| IP Camera | 8-ch IP cameras inputs.
4-ch connected via PoE interfaces and 4-ch
extendable via PoE switch. |
| Two-way Audio | 1, integrated in EXT.DEV interface |
Video/Audio Output
| Video Output | Main output: 1, integrated in EXT.DEV
interface
VGA: 1 |
| Audio Output | 1, integrated in AVOUT of EXT.DEV
interface |
Encoding/Decoding Parameter
Video
Compression | H.264/H.265 |
Encoding
Resolution | Main stream:
4 MP/3 MP/1080p/720p/WD1/4CIF
Sub-stream: 720P/4CIF/2CIF/CIF |
| Frame Rate | PAL: 1 to 25 fps; NTSC: 1 to 30 fps |
Audio
Compression | G.711/G.722.1 |
| Stream Type | Video, Video & Audio |
Storage
| HDD/SSD | 2 × 2.5 inch HDD/SSD, up to 2 TB for each
HDD/SSD
A dummy HDD with USB 3.0 interface |
| SD Card | 1 × SD card, up to 256 GB |
Wireless Network
| 3G/4G Dialing | Optional.
WCDMA/TDD-LTE/FDD-LTE modules are
supported. 1 × 3G/4G card slot, 1 ×
Rosenberger antenna |
| Wi-Fi | Optional.
802.11B/G/N and 802.11AC are selectable.
1 antenna is needed for 802.11B/G/N
module. 2 antennas are needed for
802.11AC module |
Positioning
GNSS (Global
Navigation
Satellite
System) | GPS (Global Positioning System) &
GLONASS (Global Navigation Satellite
System), 1 × Rosenberger antenna |
PoE
| PoE Interface | 4 × RJ45 PoE interface |
Max.
Consumption | 45 W |
External Interface
Network
Interface | 1 × 10M/100M RJ45 Ethernet interface
1 × 10M/100M M12 6-pin aviation
connector (Non-PoE) |
| Serial Port | 1 × RS-232, 1 × RS-422 (integrated in
EXT.DEV interface) |
| USB Interface | Front panel: 1 × USB 2.0
Rear panel: 1 × USB 2.0 (5-pin aviation
connector) |
| Sensor-In | 4 high/low level signal inputs
Note: high level (6 to 36 VDC), low level (0
to 4 VDC ) |
| Alarm Input | 4 high/low level signal inputs, 1 pulse signal
input, 1 BUTTON input
Note: high level (6 to 36 VDC), low level (0
to 4 VDC ) |
| Alarm Output | 2 relay signal outputs
Note: high level (6 to 36 VDC), low level (0
to 5 VDC ) |
| G-Sensor | Built-in G-Sensor & Gyro |
General
Operating
Method | Mouse, IR remote control, Web control,
and touchscreen |
| Power Supply | 9 to 32 VDC |
| Consumption | Standby: ≤ 0.5 W
Full load: ≤ 45 W
Note: Without peripheral and storage
media ≤ 20 W |
Working
Temperature | Device that provides dummy HDD with
heating function: -30 °C to +60 °C (-22 °F to
+140 °F)
Other devices: -10 °C to +60 °C (+14 °F to
+140 °F) |
Working
Humidity | 10% to 95% |
Dimension (W ×
D × H) | 206 × 219 × 60 mm (8.1 × 8.62 × 2.36 inch) |
Weight
(Without
Storage Media) | 1.6 kg (3.5 lb) |
| Certification | CE/FCC/Emark/EN50155/CB/EN45545-
2/ROHS 2.0/WEEE/REACH/ISO-7637-
2/MIL-STD-810G |
