Hikvision NEI-BT4M2617 4 MP Termal Bi-spectrum ve Optik (IR) Akıllı Bullet Network IP Kamera

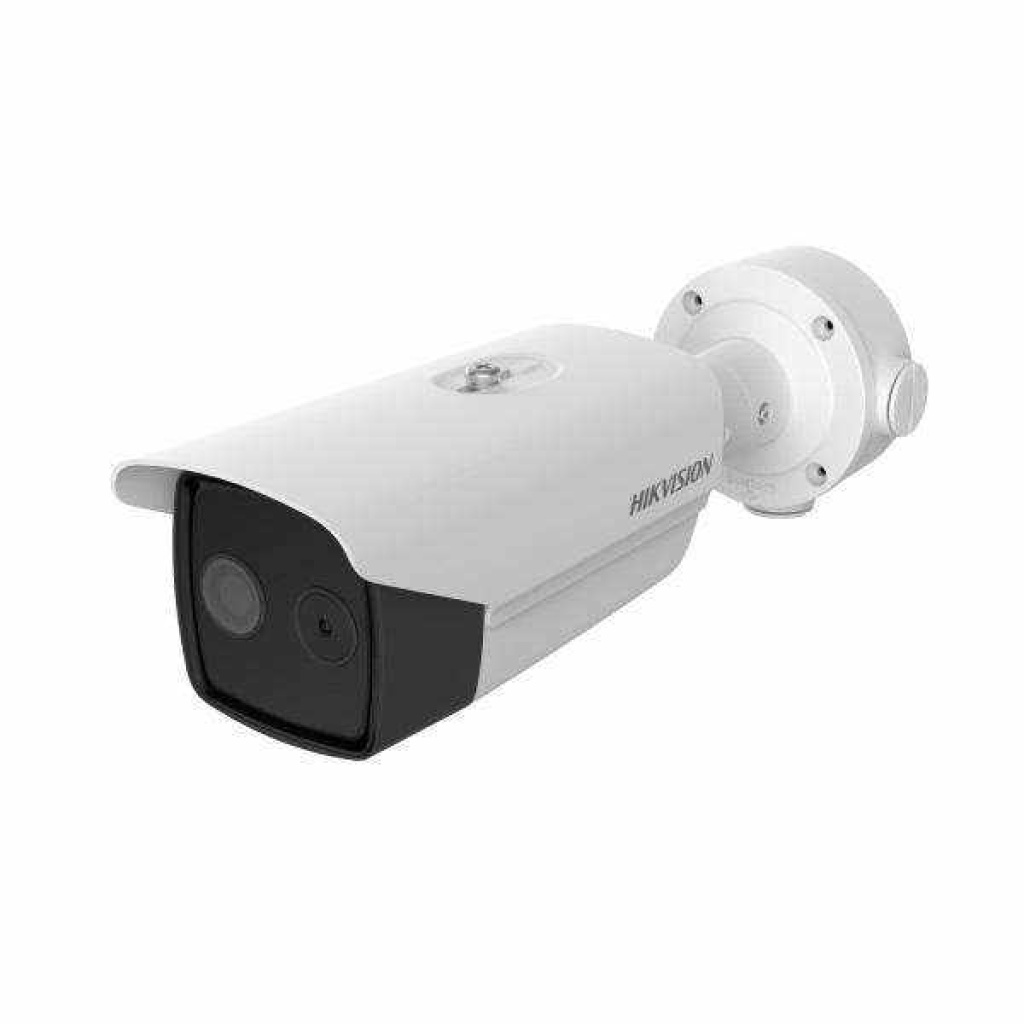

Thermal Bi-spectrum Network Bullet Camera, equipped with built-in GPU which supports intelligent behavior analysis algorithm, can realize high-precision VCA detection and real-time alarm. It is applied to perimeter defense and fire-prevention purposes in critical infrastructures such as community, villa, construction site, factory, 4S stores, and so on. The pre-alarm system helps you discover unexpected events immediately and protects your property.
Smart Function (Thermal Imaging)
● Image processing technology: adaptive AGC, DDE, 3D DNR, NETD ≤ 40 mk (@25 °C,F# = 1.1)
● Behavior analysis function, based on deep learning algorithm: line crossing, intrusion, region entrance & exit
● Temperature exception alarm
● Fire detection algorithm
● Bi-spectrum image fusion, picture in picture preview
● Strobe light and audio alarm Thermal Imaging Module Function
● 160 × 120 (the resolution of output image is 320 × 240) resolution sensor, and high sensitivity sensor
● 3D DNR, 15 palettes of color adjustable, image detail enhancement, and contrast adjustment
● Mirror image, digital zoom ×2, ×4, ×8

Specification
Thermal Module
Image Sensor
Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution
160 × 120 (the resolution of output image is 320 × 240)
Pixel Interval
17μm
Response Waveband
8 μm to 14 μm
NETD (Noise Equivalent Temperature Difference)
≤ 40 mk (@25 °C,F# = 1.1)
Lens (Focal Length)
9.7 mm
IFOV
2.74 mrad
Field of View
15.96° × 12° (H × V)
Min. Focusing Distance
1.2 m
Aperture
F 1.1 Optical Module
Max. Image Resolution
2688 × 1520
Image Sensor
1/2.7" Progressive Scan CMOS
Min. Illumination
Color: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON)
Shutter Speed
1 s to 1/100,000 s
Lens (Focal Length)
8 mm
Field of View
39.42° × 22.14° (H × V)
WDR
120 dB
Day & Night
IR cut filter with auto switch Image Function
Bi-spectrum Image Fusion
Fusion view of thermal view and overlaid details of the optical channel
Picture in Picture
Combines details of thermal and optical image PIP, overlay thermal image on optical image Smart Function
VCA (Video Content Analysis)
4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperature Measurement
3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
Temperature Range
-20 °C to + 150 °C (-4 °F to + 302°F)
Temperature Accuracy
± 8 °C (± 14.4 °F)
Fire Detection
Dynamic fire point detection, up to 10 fire points detectable. Infrared
IR Distance
Up to 40 m
IR Intensity and Angle
Automatically adjusted
Network
Main Stream
Visible Light: 50Hz: 25fps (2688 × 1520), 25fps (1920 × 1080), 25fps (1280 × 720)
Visible Light: 60Hz: 30fps (2688 × 1520), 30fps (1920 × 1080), 30fps (1280 × 720)
Thermal: 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240
Sub-stream
Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144)
Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
Thermal: 704 × 576, 352 × 288, 320 × 240
Video Compression
H.265/H.264/MJPEG
Audio Compression
G.711u/G.711a/G.722.1/MP2L2/G.726/PCM
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous Live View
Up to 20
User/Host Level
Up to 32 users, 3 levels: Administrator, Operator, User
Security Measures
User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering Integration
Alarm Input
2-ch inputs (0-5 VDC)
Alarm Output
2-ch relay outputs, alarm response actions configurable
Alarm Action
SD recording/relay output/smart capture/FTP upload/email linkage/audio alarm/white light alarm
Audio Input
1, 3.5 mm Mic in/Line in interface. Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio Output
Linear level, impedance: 600 Ω
Reset
1, Reset Button
Communication Interface
1, RJ45 10M/100M self-adaptive Ethernet interface. 1, RS-485 interface
SD Memory Card
Built-in micro SD card slot, support Micro SD/SDHC/SDXC card (up to 128 GB)
Supports manual/alarm recording
Analog Video Output
1.0 V [p-p]/75 Ω, PAL/NTSC
Application Programming
Open-ended API, support ISAPI, HIKVISION SDK and third-party management platform
Client
iVMS-4200, Hik-Connect
Web Browser
IE9+, Chrome 31-44, Firefox 30-51, Safari 5.02+(mac) General
Menu language
32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power
12 VDC ± 20%, two-core terminal block
PoE (802.3af, class 3)
Power Consumption
12 VDC ± 20%: 0.65 A, max. 7.5 W
PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 8 W
Working Temperature/Humidity
Temperature: -40 °C to 65 °C (-40 °F to 149 °F)
Humidity: 95% or less
Protection Level
IP66 Standard
TVS 6000V lightning protection, surge protection, voltage transient protection
Dimensions
358.3 mm × 113.5 mm × 115.2 mm (14.10" × 4.47" × 4.53")
Weight
Approx. 1.76 kg (3.88 lb)
